ConsoleFreedom 2k - Automatic Perfect Binding Machine - Bindwel Technology

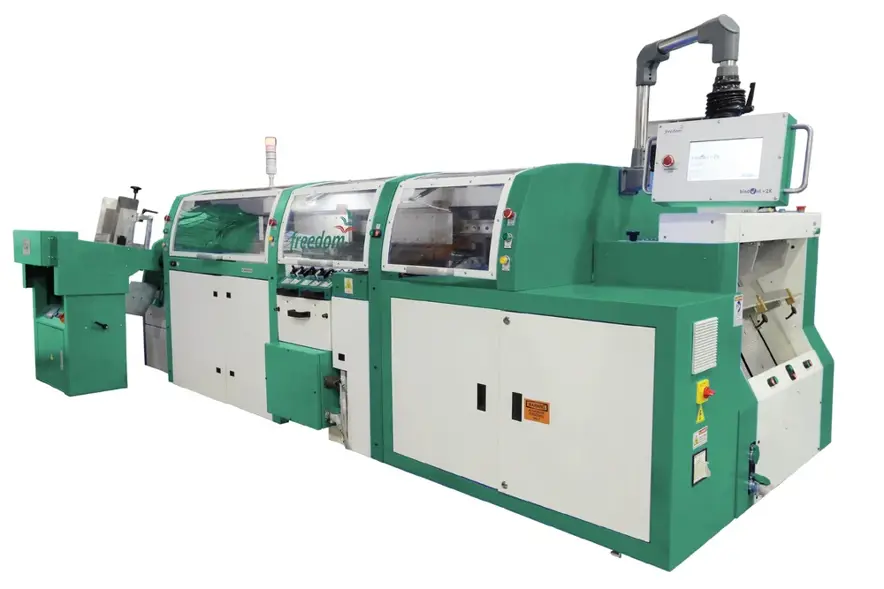

Freedom 2k - Automatic Perfect Binding Machine - Bindwel Technology
Freedom 2k - Automatic Perfect Binding Machine - Bindwel Technology
Bindwel Freedom stands for the ultimate freedom in book formats, lots and runs.
Be it a pocket diary or landscaped brochure, be it one copy or tens or hundreds of thousands, the Freedom 2K of perfect binders can change over from one to another in under 1 minute.
Wait, there is more.. We can connect a gatherer, book block feeder and trimmer inline to Freedom binders.
Freedom 2K Mini-Bindlines are ideally suitable for production of very short runs (5 copies) to medium runs (5000 copies).
Specify the size and be reassured on the speed and integrity of every job at scale!
• Fully automatic perfect binder with full connectivity
• BOD workflow automation using QR code
Features
| Fully automatic perfect binder for short-to-medium run applications including Books on demand |
| Quick job changeover in < 1 minute |
| Can be connected inline to a signature gatherer |
| Multi-function combination spine milling station with milling, micro notch, roughening, and brushing |
| Glue tank with 3 roller applicators with auto head and tail cut-off system Integrated Pre-melter, saving space as well as energy |
| Digital temperature control with accuracy of +/-1 ° Cel |
| Replaceable glue station on castor wheels. Can attach Cold Glue or PUR adhesive application system |
| Separate side gluing station with auto head and tail cut-off system, providing a uniform, thin layer of glue, that stays within the front cover score area |
| Automatic cover feeder with adjustable creasing attachment |
| Pre- register for covers., Cam driven cover nipping station |
| Control system with HMI providing all information on settings, speed, production data, energy consumption, stoppage, and maintenance warnings. Ability to send information |
| Book stacking at the delivery unit with butterfly wing book collector connected to lay down or vertical exit |
| Can be linked with automatic book block feeder for sewn / side stitched book blocks |
| Can be linked to a three knife trimmer |
Technical Specifications
| Automation Grade | Automatic |
| Voltage | 415 V |
| Frequency | 50 Hz |
| Inline Feeding Min Book Size (mm) | 140 x 110 |
| Maximum Clamp Opening (mm) | 65mm |
| Manual Feeding Min Book Size (mm) | 140 x 110 |
| Manual Feeding Max Book Size (mm) | 420 x 300 |
| Inline Feeding Max Book Size (mm) | 380 X 240 |
| Air Requirement (Dry Air) | 9 CFM, 8 Bar |
